Load Anchor's Features & Benefits

Stronger, Faster, Safer and More Efficient Way to Secure Freight

The Armour Load Anchors have numerous benefits over conventional tie down anchor systems. These include the following:

  •  Flush Mounted or recessed
  •  Self Cleaning - do not hold dirt/sand
  •  Compact yet offer greater capacity
  •  Do not hold water
  •  Easy to Install
  •  Easy to Use
  •  Won't freeze
  •  Certified
  •  Safety
  •  Multi-dimensional pull
  •  Made of high quality steel throughout – forged eyes
  •  Designed specifically for chain hooks or can use slip hook on all Armour Load Anchors
  •  Options exists to replace the rub rail and increase deck size or alternatively use the Armour Load Anchors as spaces for the rub rail
Armour TT Load Anchors

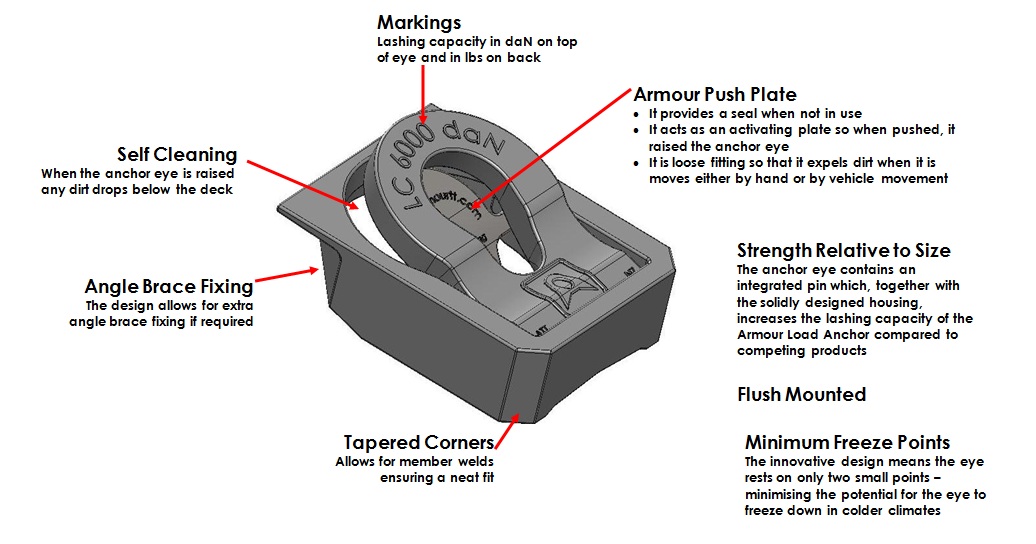

Key Features

Armourttt

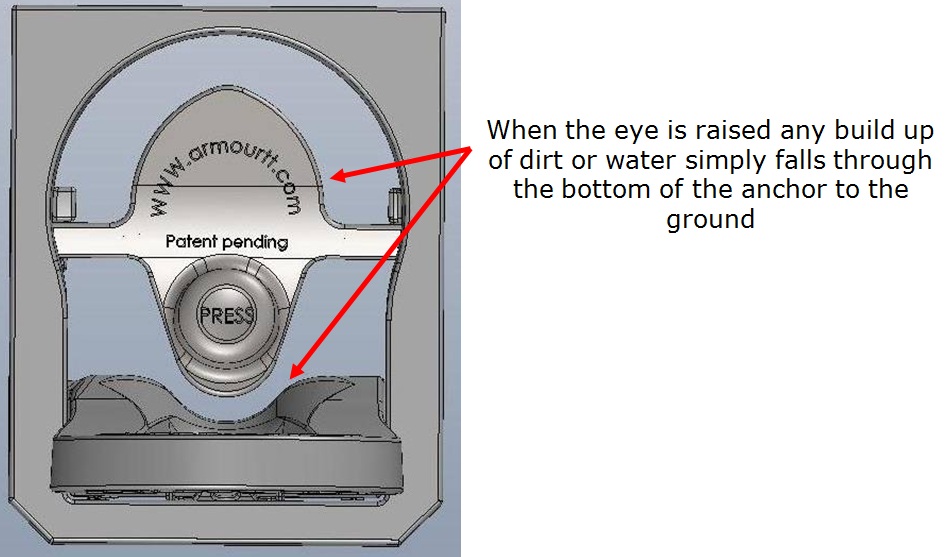

Self Cleaning

Armourttt

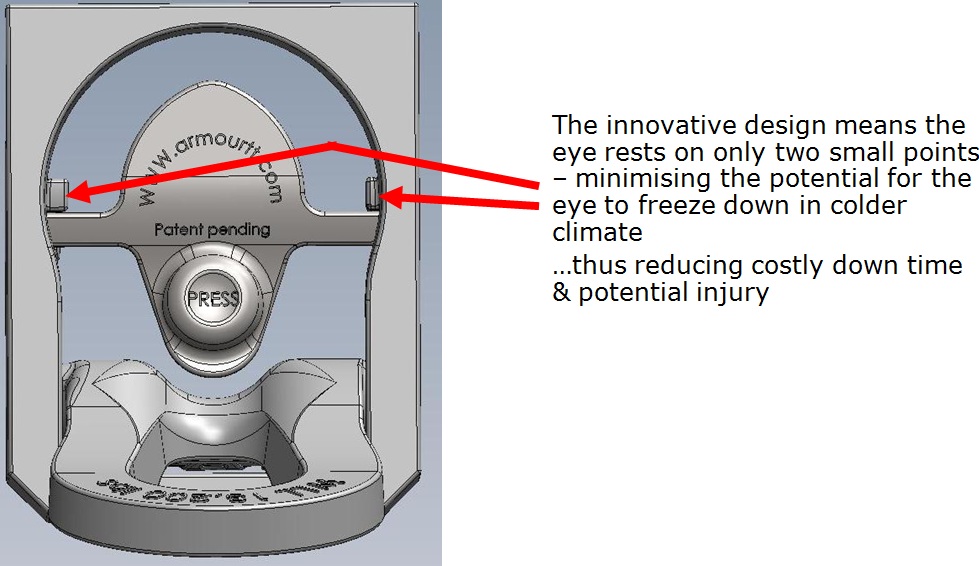

Minimising Freeze Points

Armourttt

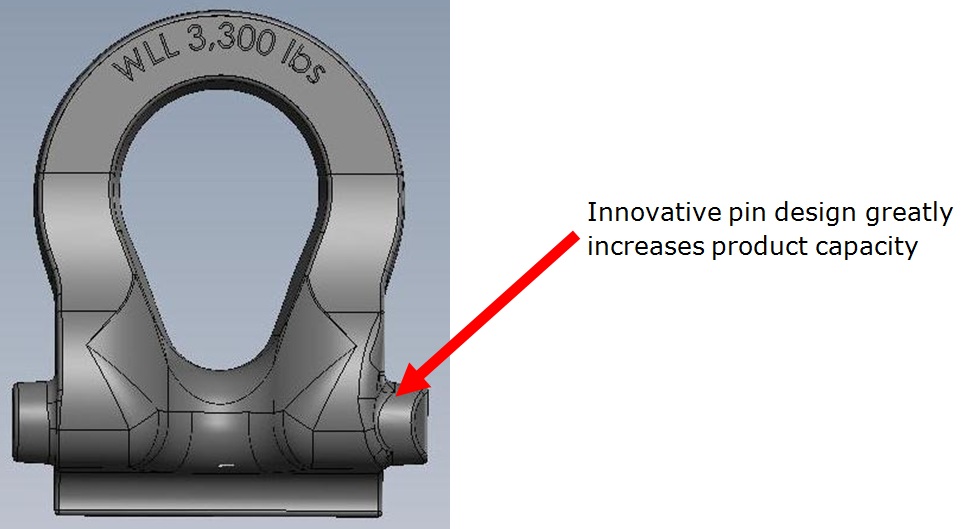

Patented Design Features

Armourttt
Armourttt

Easy to Install

The Load Anchors can be fitted to new decks/bodies or retro-fitted.

  •  Their Shape is easy to cut into a deck/skin
  •  The Load Anchor provides a solid edge to weld to
  •  Comes as a complete unit - no need to make up
  •  Quick to install
  •  Designed to accommodate a cross member if required
  •  Cost effective to install c.f recess D rings (est >US$50/unit)
The Utility Load Anchors are even easier to install as they have the option of being screwed into the deck. Click Here for more details on installation.

Health & Safety

Reduce the risk of accidents with smart design features

Free draining recess eliminate the need for ice picks to free anchors in cold climates, and hence the risk of injury.
Flush mounting reduces the risk of ankle & leg injuries when walking on a deck!

Multi-dimensional Pull

The Armour 6T and 2.5T Utility Load Anchors are rated for a mult-dimensional pull as shown below:

Armourttt

The Armour 12T Flip Over Load Anchors are rated for a mult-dimensional pull as shown below:

Armourttt
